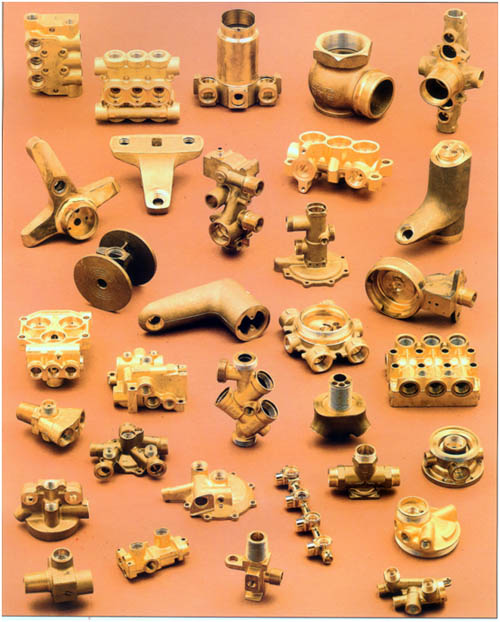

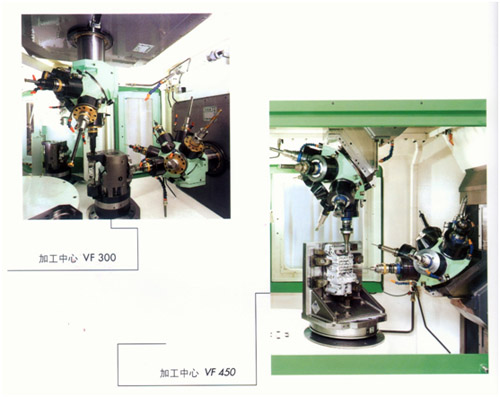

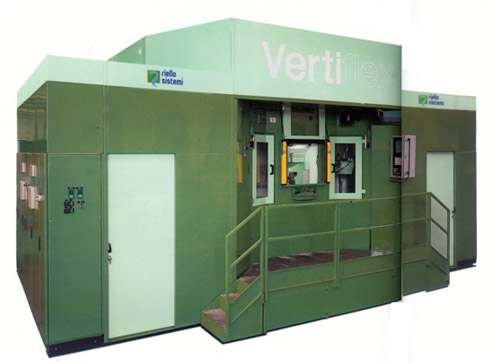

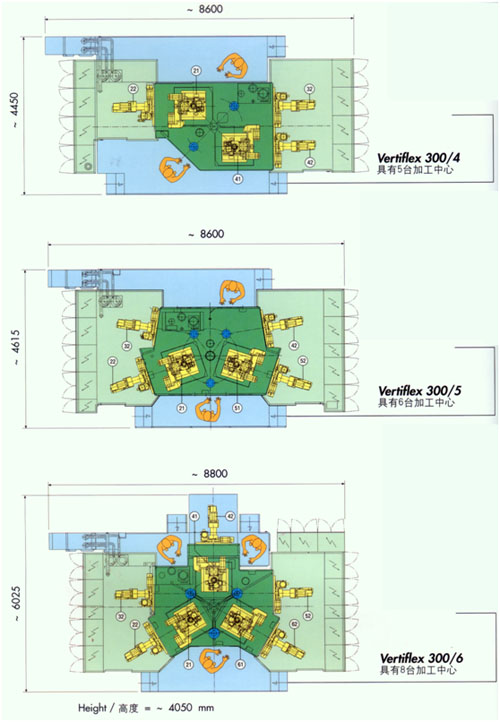

VF300 |
|
|
|
Travel axes X,Y |
300mm |
X,Y轴行程 |
|
Travel axis Z |
200mm |
Z轴行程 |
|
X,Y axes sliding |
On linear roller guides/直线滚动导轨 |
X,Y轴的滑动 |
|
Z axis sliding |
On quill/套筒轴 |
Z轴的滑动 |
|
Feed force axis X,Y |
750daN |
X,Y轴的进给力 |
|
Feed force axis Z |
1100daN |
Z轴的进给力 |
|
Rapid feed axes X,Y,Z |
20m/min |
X,Y,Z轴的快速进给 |
|

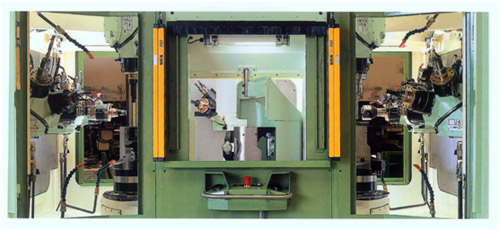

Turret head |
|
转塔头 |
|
Number of spindles |
6 |
主轴数 |
|
Indexing on coupling |
Hirth |
分度方式 |
|
Indexing accuracy |
±3” |
分度精度 |
|
Clamping |
Hydraulic/液压 |
夹紧 |
|
Tool change time |
1,5S |
换刀时间 |
|
Spindle speed |
6000/10000rpm |
主轴转速 |
|
Nose |
HSk 63 |
主轴孔形式 |
|
Power(S1) |
7,5KW |
功率（S1） |
|
Torque(S1) |
70Nm |
扭矩（S1） |
|
Rotary table |
|
回转工作台 |
|
Number of station |
4/5/6 |
工作台数量 |
|
Rotation by motor |
Brushless/无刷 |
电机旋转 |
|
Indexing on coupling |
Hirth |
分度台的连接 |
|
Indeing accuracy |
±3” |
分度精度 |
|
Indexing time |
2,5S |
分度时间 |
|

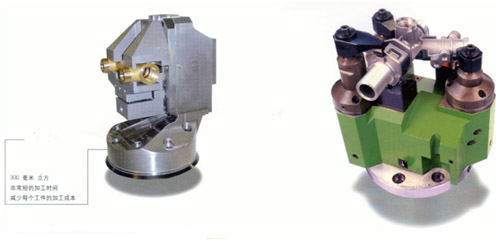

Satellite worktables |
|
卫星式工作台 |
|
Diameter |
250mm |
直径 |
|
Number of indexpositions |
360*10 |
分度位置数 |
|
Rotation by motor |
Brushless/无刷 |
电机旋转 |
|
Indexing on coupling |
Hirth |
分度方式 |
|
B-axis accuracy |
±3” |
B-轴精度 |
|
Clamping |
Hydraulic/液压 |
夹紧 |
|
Indexing time for 900 |
1S |
900分度时间 |
|

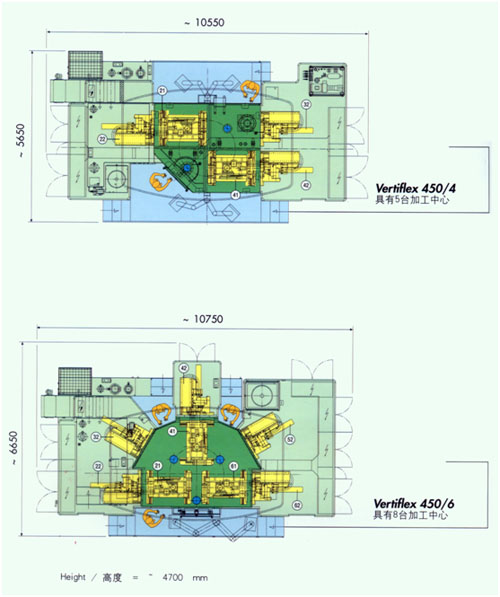

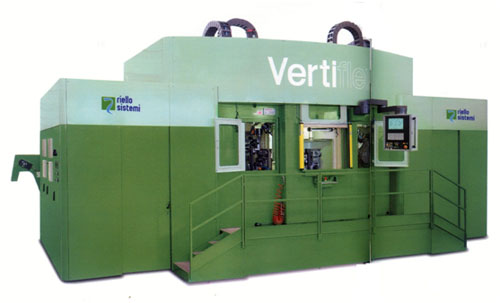

VF450 |
|
|
|
Travel axis X |
450mm |
X轴行程 |
|
Travel axis Y |
400mm |
Y轴行程 |
|
Travel axis Y |
320mm |
Z轴行程 |
|
X,Y,Z axes sliding |
On linear rollerguides/直线滚动导轨 |
X,Y,Z轴的滑动 |
|
Feed force axes X,Y |
750daN |
X,Y轴的进给力 |
|
Feed force axis Z |
1000daN |
Z轴的进给力 |
|
Rapid feed axes X,Y,Z |
30m/min |
X,Y,Z轴的快速进给 |
|
Acceleration axes X,Y,Z |
5m/s2 |
X,Y,Z轴加速度 |
|
Turret head ATC |
|
转塔头ATC |
|
Number of spindles |
6/8 |
主轴数 |
|
Indexing on coupling |
Hirth |
分度方式 |
|
Indexing accuracy |
±3” |
分度精度 |
|
Clampling |
Hydraulic/液压 |
夹紧 |
|
Tol change time |
1.8S |
换刀时间 |
|
Spindle speed |
10000rpm |
主轴转速 |
|
Nose |
HSk 63 |
主轴孔形式 |
|
Electrospindle power(S1) |
18.5KW |
电主轴功率（S1） |
|
Torque(S1) |
100Nm |
扭矩（S1） |
|
Pallet changer APC |
|
工作台交换顺APC |
|
Number of pallets |
4/6 |
交换工作台数量 |
|
Rotation by motor |
Brushless/无刷 |
电机旋转 |
|
Pallet changing time |
3.5S |
交换工作台交换时间 |
|
Pallet size |
Ф400mm |
交换工作台尺寸 |
|
Weight on each pallet |
350KG |
交换工作台允许工件重量 |
|
Rotary tables |
|
回转工作台 |
|
Number of index positions |
360*10 |
分度数 |
|
Rotation by motor |
Brushless/无刷 |
电机旋转 |
|
Indexing on coupling |
Hirth |
分度方式 |
|
B-axis accuracy |
±3” |
B-轴精度 |
|
Pallet clamping |
On Hirth coupling |
交换工作台夹紧 |
|
Indexing time for 900 |
1S |
900分度时间 |
